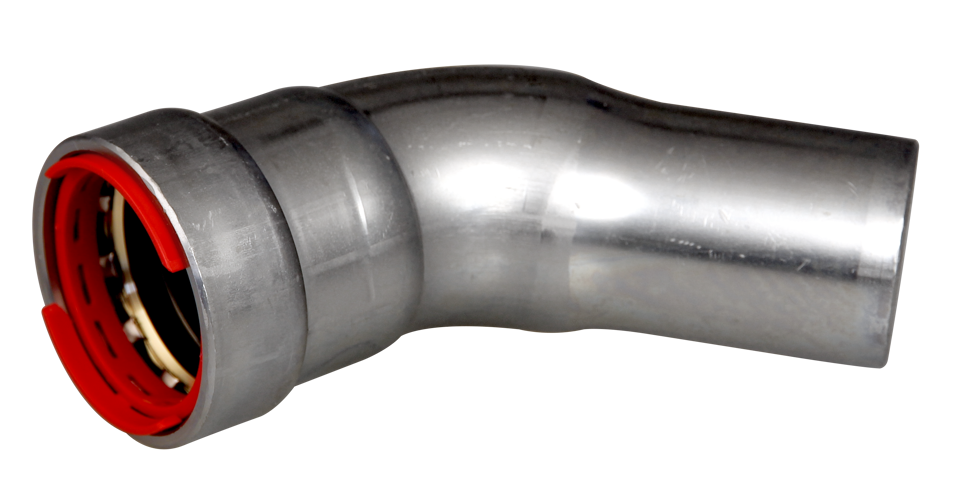

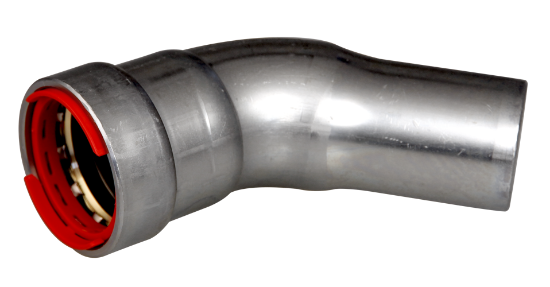

Pegler PowerPress 45degrees Street Bend 1 1/4"

Pegler PowerPress 45 Degree Street Bend 1 1/4" Description

This Pegler PowerPress 45 Degree Street Bend 1 1/4" is designed for use with thick-walled carbon steel pipe systems, providing a fast, clean, and reliable installation solution. By using the VSH PowerPress system, installation times are significantly reduced while ensuring a tidy working environment.

Pegler PowerPress 45 Degree Street Bend 1 1/4" Key Benefits

The Pegler PowerPress 45 Degree Street Bend 1 1/4" uses easy, quick connection press technology, helping to speed up installation and deliver consistent results on site.

It features a visual press indicator and clearly identified materials and dimensions, making installation straightforward and reducing the risk of errors.

The integrated Leak Before Press function allows unpressed fittings to be easily identified during pressure testing, improving overall safety and system reliability.

FM approval ensures suitability for sprinkler systems, while compatibility across heating, cooling, compressed air, and gas systems provides versatility for multiple applications.

About the Pegler VSH PowerPress System

The Pegler VSH PowerPress system is a complete range of DW profile press fittings, valves, and accessories designed for thick-walled carbon steel pipes from 1/2" to 2". It enables full system installation across heating, cooling, compressed air, gas, and sprinkler applications.

Designed with double safety features, all fittings include the Leak Before Press (LBP) function and a Visu-Control ring, which provides immediate visual confirmation after pressing and helps identify unpressed connections during testing.

The system is manufactured from galvanised steel with a ZnNi coating for excellent corrosion resistance, and features a stainless steel grip ring for secure connections. It supports operating temperatures from -40°C to +135°C and pressures up to 16 bar.

The Pegler VSH PowerPress system is compatible with modern battery press tools and can be combined with systems such as VSH XPress and VSH SudoPress, making it a flexible and reliable solution for professional installations.
