Pegler PowerPress 90degrees Bend 3/4"

Pegler PowerPress 90 Degree Bend 3/4" Description

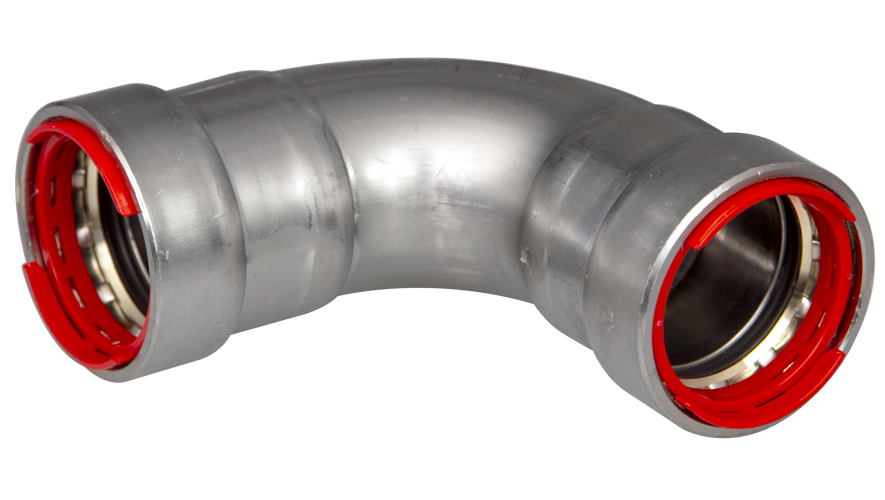

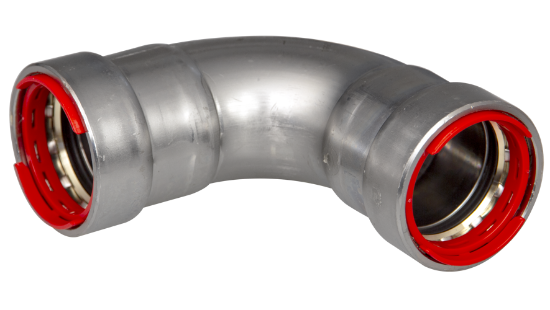

This Pegler PowerPress 90 Degree Bend 3/4" is manufactured from steel and features two press-fit end connections, making it ideal for thick-walled carbon steel pipe systems. It is designed in accordance with DIN EN 10255, EN 10220, and ASTM A53, A106, A135, and A795 standards (schedule 10 to 40), ensuring reliable and consistent performance across applications.

Using the VSH PowerPress system, installation times are significantly reduced while maintaining a clean and efficient working environment. Components are produced using advanced manufacturing processes to ensure durability and long-term performance.

Pegler PowerPress 90 Degree Bend 3/4" Key Benefits

The Pegler PowerPress 90 Degree Bend 3/4" uses easy, quick connection press technology, helping to speed up installation and deliver secure, consistent results.

It features a visual press indicator and clearly marked materials and dimensions, allowing for quick identification and reducing the risk of installation errors on site.

The integrated Leak Before Press function ensures that unpressed fittings can be easily identified during pressure testing, improving safety and overall system reliability.

FM approval makes it suitable for sprinkler systems, while compatibility across heating, cooling, compressed air, and gas systems provides excellent versatility.

About the Pegler VSH PowerPress System

The Pegler VSH PowerPress system is a complete range of DW profile press fittings, valves, and accessories designed for thick-walled carbon steel pipes from 1/2" to 2". It enables full system installation across heating, cooling, compressed air, gas, and sprinkler applications.

Designed with double safety features, all fittings include the Leak Before Press (LBP) function and a Visu-Control ring, which provides immediate visual confirmation after pressing and helps identify unpressed connections during testing.

The system is manufactured from galvanised steel with a ZnNi coating for excellent corrosion resistance, and features a stainless steel grip ring for secure connections. It supports operating temperatures from -40°C to +135°C and pressures up to 16 bar.

The Pegler VSH PowerPress system is compatible with modern battery press tools and can be combined with systems such as VSH XPress and VSH SudoPress, making it a flexible and reliable solution for professional installations.
