Pegler PowerPress PN16 Flange PN16 11/4"

Pegler PowerPress PN16 Flange PN16 1 1/4" Description

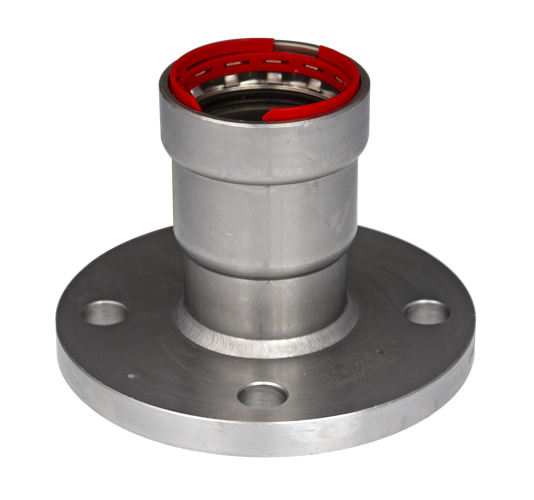

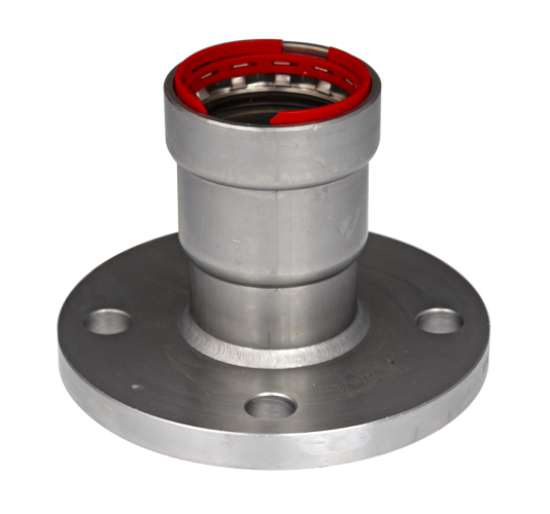

The Pegler PowerPress PN16 Flange PN16 1 1/4" (C9426) is a flange coupling with a PN16 flange pattern, designed for use with thick-walled carbon steel pipe systems. It provides a reliable flanged connection for heating, cooling, compressed air, gas, and sprinkler installations.

By using the VSH PowerPress system, installation times are significantly reduced while maintaining a clean and efficient working environment. The DW profile press fitting design ensures consistent, high-quality connections across a complete system range from 1/2" to 2".

Pegler PowerPress PN16 Flange PN16 1 1/4" Key Benefits

• PN16 flange pattern for reliable flanged pipe connections
• Easy, quick connection press technology for fast and efficient installation
• Visual press indicator for clear confirmation of successful pressing
• Materials and dimensions clearly identified for easy on-site recognition
• Leak Before Press function to detect unpressed fittings during testing
• FM approved for use in sprinkler systems and demanding applications
• Suitable for heating, cooling, compressed air, gas, and sprinkler systems

About the Pegler VSH PowerPress System

The Pegler VSH PowerPress system is a complete range of DW profile press fittings, valves, and accessories designed for thick-walled carbon steel pipes from 1/2" to 2". It enables full system installation across heating, cooling, compressed air, gas, and sprinkler applications.

Designed with double safety features, all fittings include the Leak Before Press (LBP) function and a Visu-Control ring, which provides immediate visual confirmation after pressing and helps identify unpressed connections during testing.

The system is manufactured from galvanised steel with a ZnNi coating for excellent corrosion resistance, and features a stainless steel grip ring for secure connections. It supports operating temperatures from -40°C to +135°C and pressures up to 16 bar.

The Pegler VSH PowerPress system is compatible with modern battery press tools and can be combined with systems such as VSH XPress and VSH SudoPress, making it a flexible and reliable solution for professional installations.
